Smart Dustbin Project with Arduino and Chocolate Reward

Smart Dustbin with Chocolate Reward — Arduino Interactive Project

The Smart Dustbin with Chocolate Reward is an educational and interactive product from Bigyan Project designed to motivate proper waste disposal through positive reinforcement. Using an Arduino Uno R3 as the control brain, the unit senses when a person approaches, opens its lid automatically, confirms that trash has been deposited, and dispenses a wrapped chocolate via an SG90 servo motor. This product blends electronics, embedded programming, and behavioral learning into a single demonstrable project suitable for science fairs, classroom labs, and environmental awareness events. The package is offered as a ready-built unit or as a kit for students to assemble and learn hands-on skills.

Product Specifications:

Features:

• Automatic proximity detection using HC-SR04 ultrasonic sensor to open lid when someone approaches.
• IR obstacle sensor confirms an item has been deposited before dispensing reward.
• Chocolate dispensing mechanism driven by SG90 servo with controlled timing to prevent double dispensing.
• Adjustable detection threshold and configurable cooldown to avoid reward farming.
• Compact and durable PVC enclosure designed for classroom use and easy assembly.
• Off-the-shelf Arduino Uno R3 platform for easy programming and extension.
• Offered as both a hands-on kit for learning and a fully assembled demo unit for immediate use.
• Includes detailed wiring diagram, commented Arduino sketch, and calibration instructions.
• Hygiene-focused design: sealed reward channel and recommendations for wrapped chocolates only.
• Expandable: optional data logging, display, or IoT connectivity for advanced projects.

Applications / Use Cases:

• School science fairs and student project demonstrations where interactivity and novelty increase engagement.
• Classroom STEM labs for teaching sensors, actuators, and basic embedded control logic.
• Environmental awareness campaigns to promote proper waste disposal using positive reinforcement.
• Maker spaces and robotics clubs as a compact demonstration combining hardware, software, and design.
• Demonstration units in public facilities (with supervised testing) to study behavioral responses to rewards.
• Workshops and training sessions where students build the kit to learn soldering, wiring, and programming.

User Guide / How to Use:

1. Unpack the kit or inspect the assembled unit and ensure all components are present and undamaged.
2. Mount the ultrasonic sensor to the front panel and secure the IR obstacle sensor inside the deposit mouth as shown in the wiring diagram.
3. Connect the SG90 servo to the designated servo header on the Arduino; ensure servo power is stable and within 5V tolerance.
4. Upload the provided Arduino sketch to the Uno R3 using the Arduino IDE. The sketch includes comments for threshold and cooldown adjustments.
5. Fill the reward hopper with small wrapped chocolates (max 10). Ensure chocolates are individually wrapped for hygiene.
6. Power the unit via a 5V adapter or a USB power bank; allow the system to initialize and self-check sensors.
7. Calibrate the ultrasonic distance threshold (default ~15 cm) and test the IR confirmation by dropping a small piece of paper into the mouth.
8. Test a full cycle: approach → lid open → deposit → IR confirm → servo actuates → chocolate dispensed → cooldown.
9. If used in classrooms, supervise students and set a cooldown time to prevent repeated dispensing for a single user.
10. Refer to the troubleshooting section for common issues like false positives, servo jitter, or IR sensitivity problems.

Frequently Asked Questions (FAQs):

• Q: How does the dustbin avoid giving multiple chocolates for one deposit?
  A: The included firmware implements a confirmation and cooldown sequence: the IR sensor confirms the object, the reward dispenses once, then a configurable cooldown (default 20 seconds) prevents immediate repeat rewards.
• Q: Can the unit run from a power bank?
  A: Yes — the system runs on 5V USB power. Use a high-quality power bank capable of supplying consistent current for the Arduino and servo. For extended demonstrations use a powered 5V adapter.
• Q: Is it hygienic to dispense chocolates from the bin?
  A: The product uses a sealed dispensing channel and recommends only pre-wrapped chocolates. Bigyan Project also provides guidance for cleaning and replacing the hopper to maintain hygiene.
• Q: Will sunlight or ambient light affect the IR sensor performance?
  A: Strong ambient light can affect some IR modules. The design positions the IR sensor within the deposit mouth to reduce interference and the code includes a calibration routine to set sensitivity.
• Q: What if the servo buzzes or misaligns?
  A: Check the servo power line for voltage drop, ensure the servo horn is securely fastened, and use the calibration routine in the sketch to set travel angles. Replace the servo if mechanical wear is detected.
• Q: Can I change the reward type (stickers, tokens) instead of chocolate?
  A: Yes. The dispensing mechanism can be adapted for small tokens or stickers; ensure the hopper and dispensing gate are sized accordingly and sealed for hygiene.
• Q: Is the kit suitable for beginner students?
  A: The kit is ideal for beginners with supervision. It teaches wiring, sensor basics, and Arduino programming. Bigyan Project includes step-by-step instructions to simplify the learning curve.

Challenges and Considerations:

• False triggers from small animals or waving hands — calibrate ultrasonic threshold and implement debounce logic in code.
• Reward farming — implement cooldown and single-dispense confirmation to prevent misuse in unsupervised environments.
• Hygiene concerns for food rewards — always use individually wrapped items and a sealed dispensing channel; provide cleaning guidelines.
• Servo wear with frequent use — choose high-quality servos for heavy demonstration schedules or design for easy replacement.
• Battery life and power stability — use a stable 5V supply to avoid resets; advise users to test with the selected power source before public demos.
• Environmental durability — PVC is robust but consider varnish or protective coating for long-term installations in dusty areas.

Compatibility:

• Compatible with Arduino Uno R3 and other 5V microcontroller boards with minor pin adjustments.
• HC-SR04 and most common IR obstacle sensors supported; code includes simple wrappers to remap pins.
• SG90 and similar small servos supported; larger servos will require separate power supply and code adjustments.
• Expandable to OLED/LCD displays, Wi-Fi modules (ESP8266/ESP32) for telemetry, and data logging shields.
• Works with standard USB power banks, 5V adapters, and classroom power supplies with appropriate current ratings.

Future Enhancement Options:

• Add an LCD/OLED to show disposal statistics (count of disposed items, chocolates dispensed).
• Integrate Wi-Fi (ESP8266/ESP32) to upload usage data to a dashboard or classroom leaderboard.
• Replace chocolate with non-food rewards (stickers, tokens) and implement token redemption systems.
• Use weight sensors or camera-based vision for more accurate confirmation of deposited items.
• Implement adaptive reward logic based on frequency of use or classroom participation rules.
• Add a rechargeable battery pack and solar trickle charging for outdoor awareness installations.
• Publish an advanced lesson plan and teacher guide on news.bigyanproject.com to complement the product.

Benefits:

• Encourages positive waste disposal behavior through immediate, tangible rewards.
• Hands-on learning opportunity for students in electronics, programming, and product design.
• High engagement at science fairs and demonstrations due to the novelty of reward-based interaction.
• Versatile — usable as a kit for learning or as an assembled demo for immediate display.
• Supports curriculum objectives around sensors, actuators, and embedded systems.
• Provides a practical case study for behavioral science projects and environmental campaigns.

Intro / Lead Paragraph:
A group of students from বিজ্ঞান প্রজেক্ট (Bigyan Project) have created an innovative Smart Dustbin with Chocolate Reward using Arduino technology. This project, developed as part of a science fair initiative, aims to promote cleanliness by rewarding users with chocolate whenever they properly dispose of trash.

Background Context:
Improper waste disposal remains a challenge in many communities, especially in schools where students often overlook dustbins. Traditional awareness campaigns are not always effective at encouraging positive behavior. This project addresses that gap by combining technology and psychology — using rewards to encourage proper waste management while teaching students about electronics and automation.

Project Details:

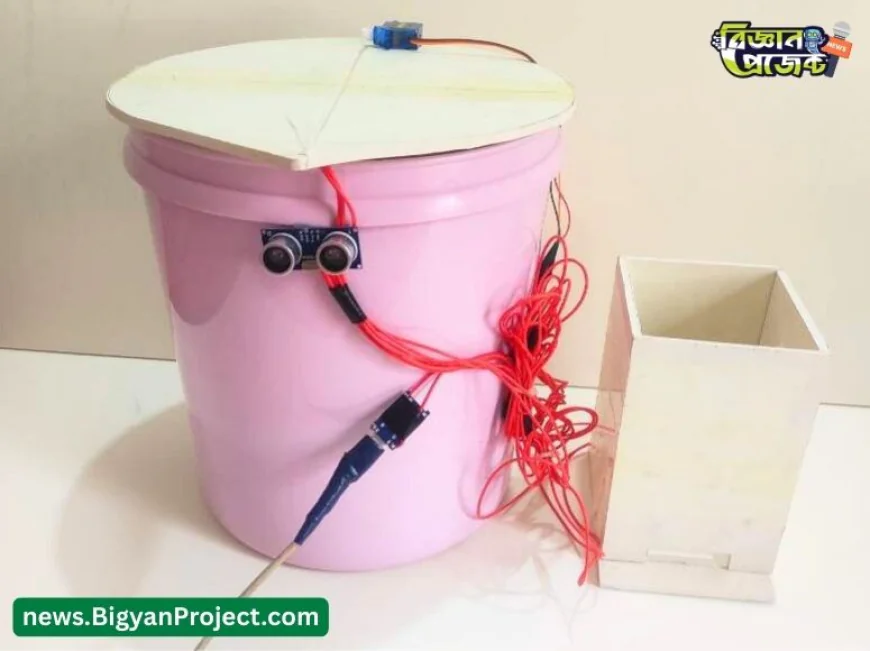

The Smart Dustbin is powered by an Arduino Uno R3 and uses an ultrasonic sensor (HC-SR04) to detect when someone approaches. The lid opens automatically, and an IR obstacle sensor confirms that trash has been deposited. Once verified, an SG90 servo motor activates to dispense a small chocolate as a reward. According to the student team, the design was inspired by the idea of combining fun with responsibility. "We wanted to make waste disposal exciting for our classmates," one student explained. The dustbin is built with PVC boards and can hold up to 10 chocolates at a time.

Research / Innovation Angle:
The uniqueness of this project lies in its behavioral science approach to environmental awareness. While smart dustbins using sensors are not new, integrating a reward-based system is a novel idea at the school project level. The prototype demonstrates how low-cost electronics can be used not only for automation but also for promoting sustainable habits. Future iterations could include IoT connectivity for data collection, or alternative reward systems such as tokens or stickers to expand its educational use.

Impact and Applications:
The project has potential applications in classrooms, science exhibitions, and awareness campaigns. By engaging students with rewards, it creates a fun and memorable experience that reinforces proper waste disposal. Teachers can also use the dustbin as a teaching aid for subjects like robotics, environmental science, and behavioral psychology. On a larger scale, similar systems could be adapted for public awareness campaigns to encourage responsible environmental practices.

Quotes & Voices:
Student: "We believe learning should be interactive and fun. This project not only taught us about Arduino and sensors but also showed us how technology can change behavior in a positive way."

Teacher/Mentor: "The Smart Dustbin with Chocolate Reward is a great example of how simple electronics can solve everyday problems. It encourages students to think creatively about sustainability."

Industry Expert: "Projects like this show how young innovators can bridge the gap between technology and social impact. Reward-based waste management is a clever approach that could inspire more practical environmental solutions."

Conclusion:
The Smart Dustbin with Chocolate Reward demonstrates how creativity, technology, and social responsibility can come together in a single project. With further enhancements such as IoT integration or alternative rewards, it could evolve into a powerful tool for both education and awareness. Most importantly, it highlights the creativity and potential of young innovators who are eager to solve real-world problems in unique ways.
